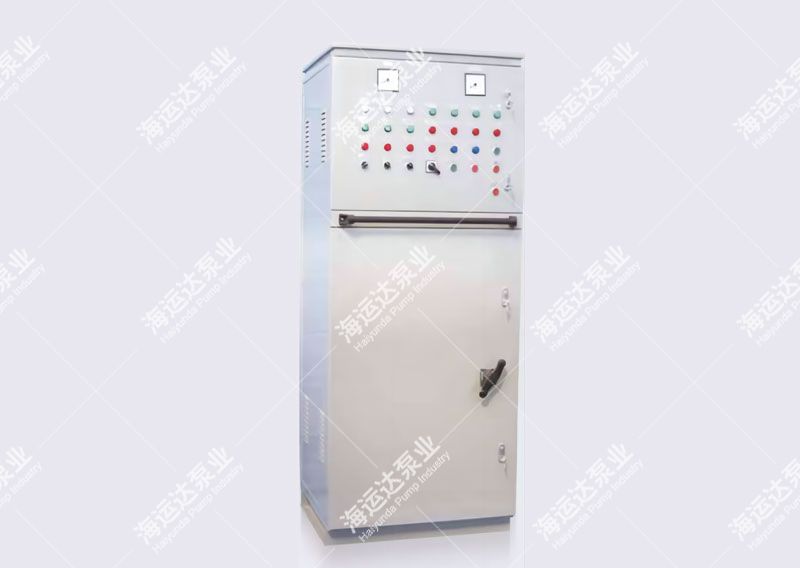

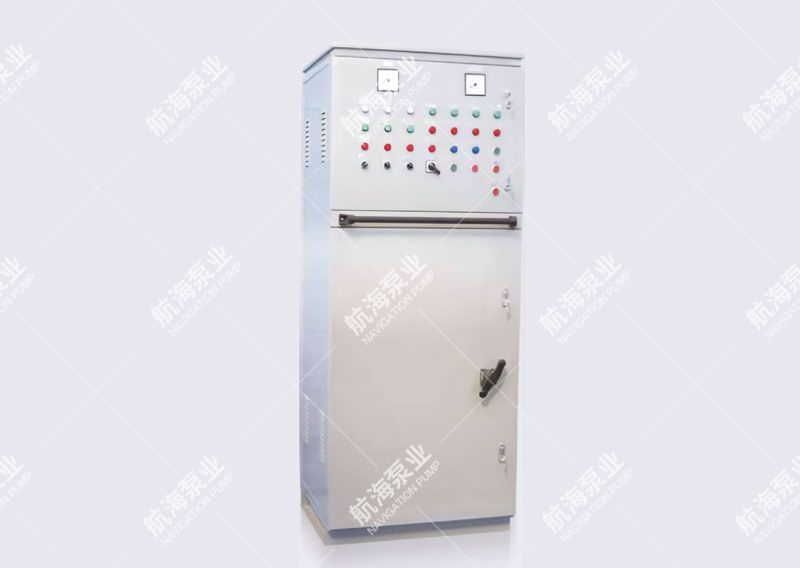

Product name：QDJ series electric motor self coupling voltage reduction starting control box
Category：Control box
Release time：07-08-2024
Number of views：32
Product Introduction
The QDJ series motor self coupling voltage reduction starting control box is used for self coupling voltage reduction starting control of three-phase asynchronous motors in various ship equipment. By setting and selecting different transformer taps, the starting current of the motor can be effectively controlled within 1.3 times the rated current, thereby reducing the impact on the equipment power supply. At the same time, it has protection functions such as short circuit, phase loss, overload, and voltage loss. The control box can be equipped with remote control function.
The QDJ series electric motor self coupling voltage reduction starting control box can be used for controlling the lateral thruster motor of ships by adding some control, alarm, signal control and other functions.
Applicable environment
Environmental temperature:- 25℃ ~ 45℃
Tilt and sway: ± 22.5 ℃
When a ship is operating normally: the impact of shock, vibration, salt spray, mold, and humid air at sea
Box protection level: IP22， It can also be made into IP44 or IP56 according to user requirements
The specific specifications, appearance, and installation dimensions of the QDJ series motor self coupling voltage reduction starting control box can be determined through mutual consultation according to user requirements.
